Overview

DFWK-12 series outdoor ring cabinets are developed and produced by the company according to the characteristics of distribution network in various regions of China and the actual situation of cable transformation of urban distribution network.

DFWK-12 series outdoor ring net cabinets adopt XGN15-12 box type fixed ac metal closed switchgear, which has the advantages of modularization, expandable, fully insulated, fully sealed, safe and reliable, maintenance-free and so on. it is suitable for any harsh environment and is widely used in industrial parks, residential areas, streets, airports, various buildings, bustling commercial centers and other places.

DFWK-12 series outdoor ring network cabinet standard voltage grade 12 kV、24kV, can expand the distribution network automation function, realizes the ring network cabinet intelligence, lets the power grid stronger and more intelligent.

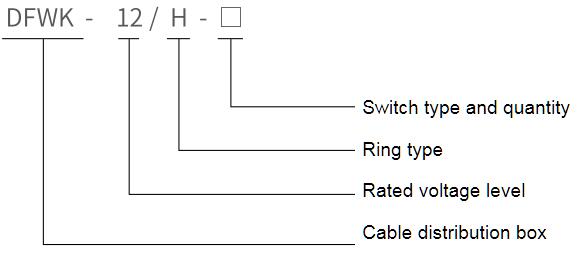

Model meaning

Conditions of use

♦ Ambient temperature: maximum temperature +50℃, minimum temperature -40℃, maximum daily average temperature not exceeding 35℃;
♦ Relative humidity: daily average value does not exceed 95%, monthly average value does not exceed 90%;
♦ Wind speed: no more than 35m/s;
♦ Pollution level: Ⅲ level;
♦ Earthquake intensity: 8 degrees;
♦ Ground inclination: no more than 3 degrees;
♦ Installation location: Installed in a place without fire, explosion or violent vibration, good ventilation and no corrosive gas.
Special conditions
♦ When the equipment is installed at an altitude of more than 2000 meters, special notice is required so that the company can adjust the SF6 pressure during manufacturing.
♦ Please consult with the company if special severe conditions are involved.
